#include <PeripheralImon.h>

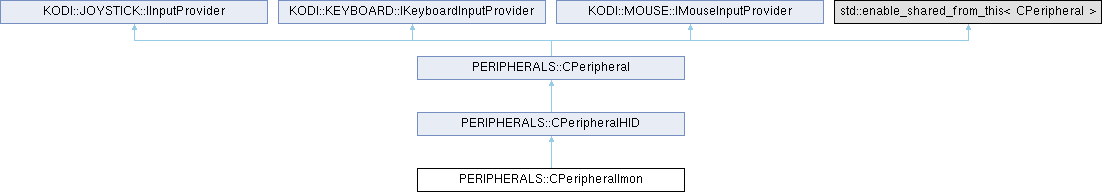

Inheritance diagram for PERIPHERALS::CPeripheralImon:

Public Member Functions
	CPeripheralImon (CPeripherals &manager, const PeripheralScanResult &scanResult, CPeripheralBus *bus)

	~CPeripheralImon (void) override=default

bool	InitialiseFeature (const PeripheralFeature feature) override
	Initialise one of the features of this peripheral.

void	OnSettingChanged (const std::string &strChangedSetting) override
	Called when a setting changed.

void	OnDeviceRemoved () override
	Called when this device is removed, before calling the destructor.

void	AddSetting (const std::string &strKey, const std::shared_ptr< const CSetting > &setting, int order) override
	Add a setting to this peripheral. This will overwrite a previous setting with the same key.

bool	IsImonConflictsWithDInput ()

Public Member Functions inherited from PERIPHERALS::CPeripheralHID
	CPeripheralHID (CPeripherals &manager, const PeripheralScanResult &scanResult, CPeripheralBus *bus)

	~CPeripheralHID (void) override

virtual bool	LookupSymAndUnicode (XBMC_keysym &keysym, uint8_t key, char unicode)

Public Member Functions inherited from PERIPHERALS::CPeripheral
	CPeripheral (CPeripherals &manager, const PeripheralScanResult &scanResult, CPeripheralBus *bus)

	~CPeripheral (void) override

bool	operator== (const CPeripheral &right) const

bool	operator!= (const CPeripheral &right) const

bool	operator== (const PeripheralScanResult &right) const

bool	operator!= (const PeripheralScanResult &right) const

const std::string &	FileLocation (void) const

const std::string &	Location (void) const

int	VendorId (void) const

const char *	VendorIdAsString (void) const

int	ProductId (void) const

const char *	ProductIdAsString (void) const

PeripheralType	Type (void) const

PeripheralBusType	GetBusType (void) const

const std::string &	DeviceName (void) const

bool	IsHidden (void) const

void	SetHidden (bool bSetTo=true)

const std::string &	GetVersionInfo (void) const

virtual std::string	GetIcon () const
	Get an icon for this peripheral.

bool	HasFeature (const PeripheralFeature feature) const
	Check whether this device has the given feature.

void	GetFeatures (std::vector< PeripheralFeature > &features) const
	Get all features that are supported by this device.

bool	Initialise (void)
	Initialises the peripheral.

virtual void	OnUserNotification ()
	Briefly activate a feature to notify the user.

virtual bool	TestFeature (PeripheralFeature feature)
	Briefly test one of the features of this peripheral.

virtual void	GetSubdevices (PeripheralVector &subDevices) const
	Get all subdevices if this device is multifunctional.

virtual bool	IsMultiFunctional (void) const

virtual bool	HasSetting (const std::string &strKey) const
	Check whether a setting is known with the given key.

virtual bool	HasSettings (void) const

virtual bool	HasConfigurableSettings (void) const

virtual const std::string	GetSettingString (const std::string &strKey) const
	Get the value of a setting.

virtual bool	SetSetting (const std::string &strKey, const std::string &strValue)

virtual void	SetSettingVisible (const std::string &strKey, bool bSetTo)

virtual bool	IsSettingVisible (const std::string &strKey) const

virtual int	GetSettingInt (const std::string &strKey) const

virtual bool	SetSetting (const std::string &strKey, int iValue)

virtual bool	GetSettingBool (const std::string &strKey) const

virtual bool	SetSetting (const std::string &strKey, bool bValue)

virtual float	GetSettingFloat (const std::string &strKey) const

virtual bool	SetSetting (const std::string &strKey, float fValue)

virtual void	PersistSettings (bool bExiting=false)

virtual void	LoadPersistedSettings (void)

virtual void	ResetDefaultSettings (void)

virtual std::vector< std::shared_ptr< CSetting > >	GetSettings (void) const

virtual bool	ErrorOccured (void) const

virtual void	RegisterJoystickDriverHandler (KODI::JOYSTICK::IDriverHandler *handler, bool bPromiscuous)

virtual void	UnregisterJoystickDriverHandler (KODI::JOYSTICK::IDriverHandler *handler)

virtual void	RegisterKeyboardDriverHandler (KODI::KEYBOARD::IKeyboardDriverHandler *handler, bool bPromiscuous)

virtual void	UnregisterKeyboardDriverHandler (KODI::KEYBOARD::IKeyboardDriverHandler *handler)

virtual void	RegisterMouseDriverHandler (KODI::MOUSE::IMouseDriverHandler *handler, bool bPromiscuous)

virtual void	UnregisterMouseDriverHandler (KODI::MOUSE::IMouseDriverHandler *handler)

void	RegisterInputHandler (KODI::JOYSTICK::IInputHandler *handler, bool bPromiscuous) override
	Register a handler for the provided input.

void	UnregisterInputHandler (KODI::JOYSTICK::IInputHandler *handler) override
	Unregister a handler.

void	RegisterKeyboardHandler (KODI::KEYBOARD::IKeyboardInputHandler *handler, bool bPromiscuous, bool forceDefaultMap) override
	Registers a handler to be called on keyboard input.

void	UnregisterKeyboardHandler (KODI::KEYBOARD::IKeyboardInputHandler *handler) override
	Unregisters handler from keyboard input.

void	RegisterMouseHandler (KODI::MOUSE::IMouseInputHandler *handler, bool bPromiscuous, bool forceDefaultMap) override
	Registers a handler to be called on mouse input.

void	UnregisterMouseHandler (KODI::MOUSE::IMouseInputHandler *handler) override
	Unregisters handler from mouse input.

virtual void	RegisterJoystickButtonMapper (KODI::JOYSTICK::IButtonMapper *mapper)

virtual void	UnregisterJoystickButtonMapper (KODI::JOYSTICK::IButtonMapper *mapper)

virtual KODI::JOYSTICK::IDriverReceiver *	GetDriverReceiver ()

virtual KODI::KEYMAP::IKeymap *	GetKeymap (const std::string &controllerId)

virtual CDateTime	LastActive () const
	Return the last time this peripheral was active.

virtual KODI::GAME::ControllerPtr	ControllerProfile () const
	Get the controller profile that best represents this peripheral.

virtual void	SetControllerProfile (const KODI::GAME::ControllerPtr &controller)
	Set the controller profile for this peripheral.

Public Member Functions inherited from KODI::JOYSTICK::IInputProvider
virtual	~IInputProvider ()=default

Public Member Functions inherited from KODI::KEYBOARD::IKeyboardInputProvider
virtual	~IKeyboardInputProvider ()=default

Public Member Functions inherited from KODI::MOUSE::IMouseInputProvider
virtual	~IMouseInputProvider ()=default

Static Public Member Functions
static long	GetCountOfImonsConflictWithDInput ()

static void	ActionOnImonConflict (bool deviceInserted=true)

Additional Inherited Members
Protected Member Functions inherited from PERIPHERALS::CPeripheral
virtual void	ClearSettings (void)

Protected Attributes inherited from PERIPHERALS::CPeripheralHID
std::string	m_strKeymap

Protected Attributes inherited from PERIPHERALS::CPeripheral
CPeripherals &	m_manager

PeripheralType	m_type

PeripheralBusType	m_busType

PeripheralBusType	m_mappedBusType

std::string	m_strLocation

std::string	m_strDeviceName

std::string	m_strSettingsFile

std::string	m_strFileLocation

int	m_iVendorId

std::string	m_strVendorId

int	m_iProductId

std::string	m_strProductId

std::string	m_strVersionInfo

bool	m_bInitialised = false

bool	m_bHidden = false

bool	m_bError = false

std::vector< PeripheralFeature >	m_features

PeripheralVector	m_subDevices

std::map< std::string, PeripheralDeviceSetting >	m_settings

std::set< std::string >	m_changedSettings

CPeripheralBus *	m_bus

std::map< KODI::JOYSTICK::IInputHandler *, std::unique_ptr< KODI::JOYSTICK::IDriverHandler > >	m_inputHandlers

std::map< KODI::KEYBOARD::IKeyboardInputHandler *, std::unique_ptr< KODI::KEYBOARD::IKeyboardDriverHandler > >	m_keyboardHandlers

std::map< KODI::MOUSE::IMouseInputHandler *, std::unique_ptr< KODI::MOUSE::IMouseDriverHandler > >	m_mouseHandlers

std::map< KODI::JOYSTICK::IButtonMapper *, std::unique_ptr< CAddonButtonMapping > >	m_buttonMappers

KODI::GAME::ControllerPtr	m_controllerProfile

Constructor & Destructor Documentation

◆ CPeripheralImon()

CPeripheralImon::CPeripheralImon	(	CPeripherals &	manager,
		const PeripheralScanResult &	scanResult,
		CPeripheralBus *	bus )

◆ ~CPeripheralImon()

PERIPHERALS::CPeripheralImon::~CPeripheralImon ( void )

overridedefault

Member Function Documentation

◆ ActionOnImonConflict()

void CPeripheralImon::ActionOnImonConflict ( bool deviceInserted = true )

static

◆ AddSetting()

void CPeripheralImon::AddSetting	(	const std::string &	strKey,
		const std::shared_ptr< const CSetting > &	setting,
		int	order )

overridevirtual

Add a setting to this peripheral. This will overwrite a previous setting with the same key.

Parameters

strKey	The key of the setting.
setting	The setting.

Todo: add more types if needed

Reimplemented from PERIPHERALS::CPeripheral.

◆ GetCountOfImonsConflictWithDInput()

static long PERIPHERALS::CPeripheralImon::GetCountOfImonsConflictWithDInput ( )

inlinestatic

◆ InitialiseFeature()

bool CPeripheralImon::InitialiseFeature ( const PeripheralFeature feature )

overridevirtual

Initialise one of the features of this peripheral.

Parameters

feature The feature to initialise.

Returns: True when the feature has been initialised successfully, false otherwise.

Reimplemented from PERIPHERALS::CPeripheralHID.

◆ IsImonConflictsWithDInput()

bool PERIPHERALS::CPeripheralImon::IsImonConflictsWithDInput ( )

inline

◆ OnDeviceRemoved()

void CPeripheralImon::OnDeviceRemoved ( void )

overridevirtual

Called when this device is removed, before calling the destructor.

Reimplemented from PERIPHERALS::CPeripheral.

◆ OnSettingChanged()

void CPeripheralImon::OnSettingChanged ( const std::string & strChangedSetting )

overridevirtual

Called when a setting changed.

Parameters

strChangedSetting The changed setting.

Reimplemented from PERIPHERALS::CPeripheralHID.

The documentation for this class was generated from the following files:
