#include <PeripheralBus.h>

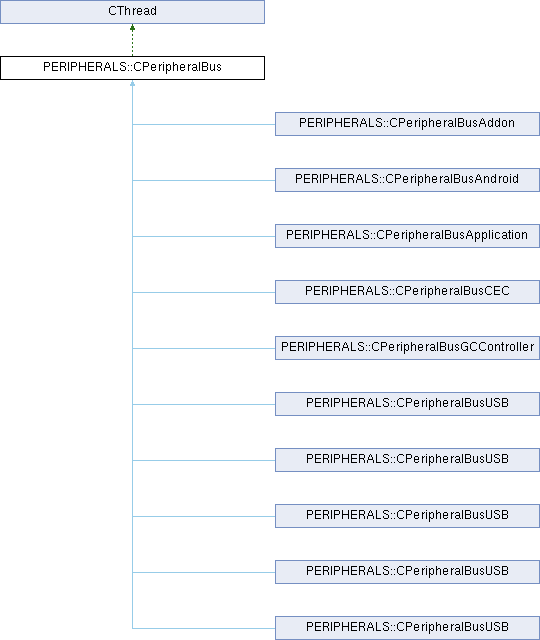

Inheritance diagram for PERIPHERALS::CPeripheralBus:

Public Member Functions
	CPeripheralBus (const std::string &threadname, CPeripherals &manager, PeripheralBusType type)

	~CPeripheralBus (void) override

PeripheralBusType	Type (void) const

bool	NeedsPolling (void) const

virtual bool	InitializeProperties (CPeripheral &peripheral)
	Initialize the properties of a peripheral with a known location.

virtual bool	InitializeButtonMap (const CPeripheral &peripheral, KODI::JOYSTICK::IButtonMap &buttonMap) const
	Initialize a joystick buttonmap, if possible.

virtual std::string	GetAppearance (const CPeripheral &peripheral) const
	Get the appearance of a peripheral, if known.

virtual PeripheralPtr	GetPeripheral (const std::string &strLocation) const
	Get the instance of the peripheral at the given location.

virtual bool	HasPeripheral (const std::string &strLocation) const
	Check whether a peripheral is present at the given location.

virtual bool	SupportsFeature (PeripheralFeature feature) const
	Check if the bus supports the given feature.

virtual unsigned int	GetPeripheralsWithFeature (PeripheralVector &results, const PeripheralFeature feature) const
	Get all peripheral instances that have the given feature.

virtual unsigned int	GetNumberOfPeripherals () const

virtual unsigned int	GetNumberOfPeripheralsWithId (const int iVendorId, const int iProductId) const

virtual void	GetFeatures (std::vector< PeripheralFeature > &features) const
	Get all features that are supported by devices on this bus.

virtual bool	HasFeature (const PeripheralFeature feature) const
	Check whether there is at least one device present with the given feature.

virtual void	OnDeviceAdded (const std::string &strLocation)
	Callback method for when a device has been added. Will perform a device scan.

virtual void	OnDeviceChanged (const std::string &strLocation)
	Callback method for when a device has been changed. Will perform a device scan.

virtual void	OnDeviceRemoved (const std::string &strLocation)
	Callback method for when a device has been removed. Will perform a device scan.

virtual void	Initialise (void)
	Initialise this bus and start a polling thread if this bus needs polling.

virtual void	Clear (void)
	Stop the polling thread and clear all known devices on this bus.

virtual void	TriggerDeviceScan (void)
	Scan for devices.

virtual void	GetDirectory (const std::string &strPath, CFileItemList &items) const
	Get all fileitems for a path.

virtual PeripheralPtr	GetByPath (const std::string &strPath) const
	Get the instance of a peripheral given it's path.

virtual void	Register (const PeripheralPtr &peripheral)
	Register a new peripheral on this bus.

virtual bool	FindComPort (std::string &strLocation)

virtual void	ProcessEvents (void)
	Poll for events.

virtual void	EnableButtonMapping ()
	Initialize button mapping.

virtual void	PowerOff (const std::string &strLocation)
	Power off the specified device.

Protected Member Functions
void	Process (void) override

virtual bool	ScanForDevices (void)

virtual void	UnregisterRemovedDevices (const PeripheralScanResults &results)

virtual void	RegisterNewDevices (const PeripheralScanResults &results)

virtual bool	PerformDeviceScan (PeripheralScanResults &results)=0
	Scan for devices on this bus and add them to the results list. This will have to be implemented for each bus.

Protected Member Functions inherited from CThread
	CThread (const char *ThreadName)

virtual void	OnStartup ()

virtual void	OnExit ()

WaitResponse	AbortableWait (CEvent &event, std::chrono::milliseconds duration=std::chrono::milliseconds(-1))

	CThread (IRunnable pRunnable, const char ThreadName)

virtual	~CThread ()

void	Create (bool bAutoDelete=false)

template<typename Rep , typename Period >
void	Sleep (std::chrono::duration< Rep, Period > duration)

bool	IsAutoDelete () const

virtual void	StopThread (bool bWait=true)

bool	IsRunning () const

bool	IsCurrentThread () const

bool	Join (std::chrono::milliseconds duration)

bool	SetPriority (const ThreadPriority &priority)
	Set the threads priority. This uses the platforms native threading library to do so.

bool	SetTask (const ThreadTask &task)
	Assign the current thread a task for OS scheduling (platform dependent)

bool	RevertTask ()
	Revert the current thread to normal scheduling (platform dependent)

virtual void	OnException ()

Protected Attributes
PeripheralVector	m_peripherals

std::chrono::milliseconds	m_iRescanTime

bool	m_bNeedsPolling

CPeripherals &	m_manager

const PeripheralBusType	m_type

CCriticalSection	m_critSection

CEvent	m_triggerEvent

Protected Attributes inherited from CThread
std::atomic< bool >	m_bStop

Additional Inherited Members
Protected Types inherited from CThread
enum	WaitResponse { WAIT_INTERRUPTED = -1 , WAIT_SIGNALED = 0 , WAIT_TIMEDOUT = 1 }

Static Protected Member Functions inherited from CThread
static const std::thread::id	GetCurrentThreadId ()

static CThread *	GetCurrentThread ()

Detailed Description

This represents a bus on the system. By default, this bus instance will scan for changes every 5 seconds. If this bus only has to be updated after a notification sent by the system, set m_bNeedsPolling to false in the constructor, and implement the OnDeviceAdded(), OnDeviceChanged() and OnDeviceRemoved() methods.

The PerformDeviceScan() method has to be implemented by each specific bus implementation.

Constructor & Destructor Documentation

◆ CPeripheralBus()

CPeripheralBus::CPeripheralBus	(	const std::string &	threadname,
		CPeripherals &	manager,
		PeripheralBusType	type )

◆ ~CPeripheralBus()

PERIPHERALS::CPeripheralBus::~CPeripheralBus ( void )

inlineoverride

Member Function Documentation

◆ Clear()

void CPeripheralBus::Clear ( void )

virtual

Stop the polling thread and clear all known devices on this bus.

Reimplemented in PERIPHERALS::CPeripheralBusUSB.

◆ EnableButtonMapping()

virtual void PERIPHERALS::CPeripheralBus::EnableButtonMapping ( )

inlinevirtual

Initialize button mapping.

Returns: True if button mapping is enabled for this bus

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ FindComPort()

virtual bool PERIPHERALS::CPeripheralBus::FindComPort ( std::string & strLocation )

inlinevirtual

◆ GetAppearance()

virtual std::string PERIPHERALS::CPeripheralBus::GetAppearance ( const CPeripheral & peripheral ) const

inlinevirtual

Get the appearance of a peripheral, if known.

Reimplemented in PERIPHERALS::CPeripheralBusAndroid.

◆ GetByPath()

PeripheralPtr CPeripheralBus::GetByPath ( const std::string & strPath ) const

virtual

Get the instance of a peripheral given it's path.

Parameters

strPath The path to the peripheral.

Returns: The peripheral or NULL if it wasn't found.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ GetDirectory()

void CPeripheralBus::GetDirectory	(	const std::string &	strPath,
		CFileItemList &	items ) const

virtual

Get all fileitems for a path.

Parameters

strPath	The path to the directory to get the items from.
items	The item list.

Reimplemented in PERIPHERALS::CPeripheralBusAddon, and PERIPHERALS::CPeripheralBusApplication.

◆ GetFeatures()

void CPeripheralBus::GetFeatures ( std::vector< PeripheralFeature > & features ) const

virtual

Get all features that are supported by devices on this bus.

Parameters

features All features.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ GetNumberOfPeripherals()

unsigned int CPeripheralBus::GetNumberOfPeripherals ( void ) const

virtual

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ GetNumberOfPeripheralsWithId()

unsigned int CPeripheralBus::GetNumberOfPeripheralsWithId	(	const int	iVendorId,
		const int	iProductId ) const

virtual

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ GetPeripheral()

PeripheralPtr CPeripheralBus::GetPeripheral ( const std::string & strLocation ) const

virtual

Get the instance of the peripheral at the given location.

Parameters

strLocation The location.

Returns: The peripheral or NULL if it wasn't found.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ GetPeripheralsWithFeature()

unsigned int CPeripheralBus::GetPeripheralsWithFeature	(	PeripheralVector &	results,
		const PeripheralFeature	feature ) const

virtual

Get all peripheral instances that have the given feature.

Parameters

results	The list of results.
feature	The feature to search for.

Returns: The number of devices that have been found.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ HasFeature()

bool CPeripheralBus::HasFeature ( const PeripheralFeature feature ) const

virtual

Check whether there is at least one device present with the given feature.

Parameters

feature The feature to check for.

Returns: True when at least one device was found with this feature, false otherwise.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ HasPeripheral()

bool CPeripheralBus::HasPeripheral ( const std::string & strLocation ) const

virtual

Check whether a peripheral is present at the given location.

Parameters

strLocation The location.

Returns: True when a peripheral was found, false otherwise.

◆ Initialise()

void CPeripheralBus::Initialise ( void )

virtual

Initialise this bus and start a polling thread if this bus needs polling.

Reimplemented in PERIPHERALS::CPeripheralBusAndroid, PERIPHERALS::CPeripheralBusApplication, and PERIPHERALS::CPeripheralBusGCController.

◆ InitializeButtonMap()

virtual bool PERIPHERALS::CPeripheralBus::InitializeButtonMap	(	const CPeripheral &	peripheral,
		KODI::JOYSTICK::IButtonMap &	buttonMap ) const

inlinevirtual

Initialize a joystick buttonmap, if possible.

Reimplemented in PERIPHERALS::CPeripheralBusAndroid.

◆ InitializeProperties()

bool CPeripheralBus::InitializeProperties ( CPeripheral & peripheral )

virtual

Initialize the properties of a peripheral with a known location.

Reimplemented in PERIPHERALS::CPeripheralBusAddon, PERIPHERALS::CPeripheralBusAndroid, and PERIPHERALS::CPeripheralBusGCController.

◆ NeedsPolling()

bool PERIPHERALS::CPeripheralBus::NeedsPolling ( void ) const

inline

Returns: True if this bus needs to be polled for changes, false if this bus performs updates via callbacks

◆ OnDeviceAdded()

void CPeripheralBus::OnDeviceAdded ( const std::string & strLocation )

virtual

Callback method for when a device has been added. Will perform a device scan.

Parameters

strLocation The location of the device that has been added.

◆ OnDeviceChanged()

void CPeripheralBus::OnDeviceChanged ( const std::string & strLocation )

virtual

Callback method for when a device has been changed. Will perform a device scan.

Parameters

strLocation The location of the device that has been changed.

◆ OnDeviceRemoved()

void CPeripheralBus::OnDeviceRemoved ( const std::string & strLocation )

virtual

Callback method for when a device has been removed. Will perform a device scan.

Parameters

strLocation The location of the device that has been removed.

◆ PerformDeviceScan()

virtual bool PERIPHERALS::CPeripheralBus::PerformDeviceScan ( PeripheralScanResults & results )

protectedpure virtual

Scan for devices on this bus and add them to the results list. This will have to be implemented for each bus.

Parameters

results The result list.

Returns: True when the scan was successful, false otherwise.

Implemented in PERIPHERALS::CPeripheralBusAddon, PERIPHERALS::CPeripheralBusAndroid, PERIPHERALS::CPeripheralBusApplication, PERIPHERALS::CPeripheralBusCEC, PERIPHERALS::CPeripheralBusGCController, PERIPHERALS::CPeripheralBusUSB, PERIPHERALS::CPeripheralBusUSB, PERIPHERALS::CPeripheralBusUSB, PERIPHERALS::CPeripheralBusUSB, and PERIPHERALS::CPeripheralBusUSB.

◆ PowerOff()

virtual void PERIPHERALS::CPeripheralBus::PowerOff ( const std::string & strLocation )

inlinevirtual

Power off the specified device.

Parameters

strLocation The device's location

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ Process()

void CPeripheralBus::Process ( void )

overrideprotectedvirtual

Reimplemented from CThread.

Reimplemented in PERIPHERALS::CPeripheralBusUSB.

◆ ProcessEvents()

virtual void PERIPHERALS::CPeripheralBus::ProcessEvents ( void )

inlinevirtual

Poll for events.

Reimplemented in PERIPHERALS::CPeripheralBusAddon, PERIPHERALS::CPeripheralBusAndroid, and PERIPHERALS::CPeripheralBusGCController.

◆ Register()

void CPeripheralBus::Register ( const PeripheralPtr & peripheral )

virtual

Register a new peripheral on this bus.

Parameters

peripheral The peripheral to register.

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ RegisterNewDevices()

void CPeripheralBus::RegisterNewDevices ( const PeripheralScanResults & results )

protectedvirtual

◆ ScanForDevices()

bool CPeripheralBus::ScanForDevices ( void )

protectedvirtual

◆ SupportsFeature()

virtual bool PERIPHERALS::CPeripheralBus::SupportsFeature ( PeripheralFeature feature ) const

inlinevirtual

Check if the bus supports the given feature.

Parameters

feature The feature to check for

Returns: True if the bus supports the feature, false otherwise

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

◆ TriggerDeviceScan()

void CPeripheralBus::TriggerDeviceScan ( void )

virtual

Scan for devices.

◆ Type()

PeripheralBusType PERIPHERALS::CPeripheralBus::Type ( void ) const

inline

Returns: The bus type

◆ UnregisterRemovedDevices()

void CPeripheralBus::UnregisterRemovedDevices ( const PeripheralScanResults & results )

protectedvirtual

Reimplemented in PERIPHERALS::CPeripheralBusAddon.

Member Data Documentation

◆ m_bNeedsPolling

bool PERIPHERALS::CPeripheralBus::m_bNeedsPolling

protected

Initial value:

=

true

true when this bus needs to be polled for new devices, false when it uses callbacks to notify this bus of changed

◆ m_critSection

CCriticalSection PERIPHERALS::CPeripheralBus::m_critSection

mutableprotected

◆ m_iRescanTime

std::chrono::milliseconds PERIPHERALS::CPeripheralBus::m_iRescanTime

protected

◆ m_manager

CPeripherals& PERIPHERALS::CPeripheralBus::m_manager

protected

◆ m_peripherals

PeripheralVector PERIPHERALS::CPeripheralBus::m_peripherals

protected

◆ m_triggerEvent

CEvent PERIPHERALS::CPeripheralBus::m_triggerEvent

protected

◆ m_type

const PeripheralBusType PERIPHERALS::CPeripheralBus::m_type

protected

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CPeripheralBus()

◆ ~CPeripheralBus()

Member Function Documentation

◆ Clear()

◆ EnableButtonMapping()

◆ FindComPort()

◆ GetAppearance()

◆ GetByPath()

◆ GetDirectory()

◆ GetFeatures()

◆ GetNumberOfPeripherals()

◆ GetNumberOfPeripheralsWithId()

◆ GetPeripheral()

◆ GetPeripheralsWithFeature()

◆ HasFeature()

◆ HasPeripheral()

◆ Initialise()

◆ InitializeButtonMap()

◆ InitializeProperties()

◆ NeedsPolling()

◆ OnDeviceAdded()

◆ OnDeviceChanged()

◆ OnDeviceRemoved()

◆ PerformDeviceScan()

◆ PowerOff()

◆ Process()

◆ ProcessEvents()

◆ Register()

◆ RegisterNewDevices()

◆ ScanForDevices()

◆ SupportsFeature()

◆ TriggerDeviceScan()

◆ Type()

◆ UnregisterRemovedDevices()

Member Data Documentation

◆ m_bNeedsPolling

◆ m_critSection

◆ m_iRescanTime

◆ m_manager

◆ m_peripherals

◆ m_triggerEvent

◆ m_type
