CAndroidKeyboard Class Reference

Native Android on-screen keyboard implementation. More...

#include <AndroidKeyboard.h>

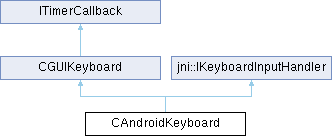

Inheritance diagram for CAndroidKeyboard:

Public Member Functions
	CAndroidKeyboard (CGUIKeyboard &owner)
	~CAndroidKeyboard () override=default
bool	ShowAndGetInput (char_callback_t pCallback, const std::string &initialString, std::string &typedString, const std::string &heading, bool hiddenInput) override
	each native keyboard needs to implement this function with the following behaviour:
void	Cancel () override
	This call should cancel a currently shown keyboard dialog. The implementation should return false from the modal ShowAndGetInput once anyone calls this method.
bool	SetTextToKeyboard (const std::string &text, bool closeKeyboard=false) override
void	OnTextChanged (const std::string &text) override
void	OnInputFinished (const std::string &text) override
void	OnInputCanceled () override
Public Member Functions inherited from CGUIKeyboard
	CGUIKeyboard ()
	~CGUIKeyboard () override=default
virtual int	GetWindowId () const
void	OnTimeout () override
void	startAutoCloseTimer (unsigned int autoCloseMs)
void	resetAutoCloseTimer ()
Public Member Functions inherited from ITimerCallback
virtual	~ITimerCallback ()=default
Public Member Functions inherited from jni::IKeyboardInputHandler
virtual	~IKeyboardInputHandler ()=default

Detailed Description

Native Android on-screen keyboard implementation.

Wraps the Java soft keyboard dialog (jni::CJNIXBMCNativeKeyboard) and blocks the calling thread until the user has either confirmed or canceled the input, as required by the CGUIKeyboard interface.

Constructor & Destructor Documentation

CAndroidKeyboard()

CAndroidKeyboard::CAndroidKeyboard ( CGUIKeyboard & owner )

inlineexplicit

~CAndroidKeyboard()

CAndroidKeyboard::~CAndroidKeyboard ( )

overridedefault

Member Function Documentation

Cancel()

void CAndroidKeyboard::Cancel ( )

overridevirtual

This call should cancel a currently shown keyboard dialog. The implementation should return false from the modal ShowAndGetInput once anyone calls this method.

Implements CGUIKeyboard.

OnInputCanceled()

void CAndroidKeyboard::OnInputCanceled ( )

overridevirtual

Implements jni::IKeyboardInputHandler.

OnInputFinished()

void CAndroidKeyboard::OnInputFinished ( const std::string & text )

overridevirtual

Implements jni::IKeyboardInputHandler.

OnTextChanged()

void CAndroidKeyboard::OnTextChanged ( const std::string & text )

overridevirtual

Implements jni::IKeyboardInputHandler.

SetTextToKeyboard()

bool CAndroidKeyboard::SetTextToKeyboard ( const std::string & text, bool closeKeyboard = false )

overridevirtual

Reimplemented from CGUIKeyboard.

ShowAndGetInput()

bool CAndroidKeyboard::ShowAndGetInput ( char_callback_t pCallback, const std::string & initialString, std::string & typedString, const std::string & heading, bool bHiddenInput )

overridevirtual

each native keyboard needs to implement this function with the following behaviour:

Parameters

pCallback	implementation should call this on each keypress with the current whole string
initialString	implementation should show that initialstring
typedstring	returns the typed string after close if return is true
heading	implementation should show a heading (e.x. "search for a movie")
bHiddenInput	if true the implementation should obfuscate the user input (e.x. by printing "*" for each char)

Returns

- true if typedstring is valid and user has confirmed input - false if typedstring is undefined and user canceled the input

Implements CGUIKeyboard.

---

The documentation for this class was generated from the following files:

• AndroidKeyboard.h
• AndroidKeyboard.cpp
